Gasoline/LPG Forklift Forklift Features:
Safe:High visibility mast, durable chassis & overhead guard, large diameter power brake, low gravity center steering axle, all these ensure benchmarking safety standards.
Performance:Strong power engine with stable and efficient transmission make the maximum use of power and torque, which leads to excellent performance and increase productivity.
Comfort:Spacious and comfortable cabin reflect the most advanced ergonomics design. Linde small diameter steering wheel, easily operated hydraulic lever and multi-functional console brings unique driving experience to driver.
Reliability:Truck endured Linde strength and durable test base on Germany strict standard, possess excellent reliability.
Service:The convenient maintenance access and a large variety percentage of customer approved parts brings a high added value in terms of accessibility and change of parts.
Parameter:
| Feature | 1.1 | Model No. | CPD15 | CPD20 | CPD25 | CPD30 | |
| 1.4 | Power type | Full-electric | Full-electric | Full-electric | Full-electric | ||
| 1.5 | Operation type | seated type | seated type | seated type | seated type | ||
| 1.6 | Load capacity | Q(t) | 1500 | 2000 | 2500 | 3000 | |
| 1.7 | Load center | C(mm) | 500 | 500 | 500 | 500 | |
| 1.8 | Front overhang | X(mm) | 447 | 447 | 495 | 495 | |
| 1.9 | wheelbase | Y(mm) | 1450 | 1450 | 1600 | 1600 | |
| Total weight | 2.1 | Total weight(including battery) | kg | 2850 | 3260 | 4210 | 4410 |
| Wheel | 3.1 | Tire type | pneumatic tire | solid tire | solid tire | solid tire | |
| 3.2 | Front wheel | 6.50-10 | 6.50-10 | 23X9-10 | 23X9-10 | ||
| 3.3 | Rear wheel | 5.00-8 | 5.00-8 | 18X7-8 | 18X7-8 | ||
| 3.4 | Front wheel tread | b10(mm) | 910 | 910 | 970 | 970 | |
| 3.5 | Rear wheel tread | b11(mm) | 930 | 930 | 950 | 950 | |
| Size | 4.1 | Height-mast lowered | h1(mm) | 2095 | 2095 | 2095 | 2095 |
| 4.2 | Free-lifting height | h2(mm) | 80 | 80 | 80 | 80 | |
| 4.3 | Lifting height | h3(mm) | 3000 | 3000 | 3000 | 3000 | |
| 4.4 | Fork height when fork lifting | h4(mm) | 4110 | 4110 | 4110 | 4110 | |
| 4.5 | Overhead guards height | h14(mm) | 2190 | 2190 | 2185 | 2185 | |
| 4.6 | Fork height when mast retracts | h13(mm) | 40 | 40 | 45 | 45 | |
| 4.7 | Tilt angle (front/rear) | ° | 6/10 | 6/10 | 6/12 | 6/12 | |
| 4.9 | Overall length | l2(mm) | 2330 | 2330 | 2529 | 2529 | |
| 4.1 | Overall width | b1(mm) | 1105 | 1105 | 1160 | 1160 | |
| 4.11 | Fork size | s/e/l(mm) | 35/100/1070 | 40/122/1070 | 40/122/1070 | 45/125/1070 | |
| 4.12 | Fork adjustment size | b5(mm) | 244-1042 | 244-1042 | 244-1020 | 244-1020 | |
| 4.13 | Min ground clearence | m2(mm) | 130 | 130 | 130 | 130 | |
| 4.14 | Stacking channel width,1000×1200 pallet(1200 span fork placement) | Ast(mm) | 4429 | 4429 | 4686 | 4286 | |
| 4.15 | Stacking channel width,1000×1200 pallet(1000 placed along fork) | Ast(mm) | 4511 | 4511 | 4511 | 4511 | |
| 4.16 | Turning radius | Wa(mm) | 2090 | 2090 | 2200 | 2200 | |
| Performance | 5.1 | Travel speed, no load / full load | km/h | 12/11 | 12/11 | 12/11 | 12/11 |
| 5.2 | Lifting speed, no load / full load | m/s | 0.205/0.221 | 0.196/0.214 | 0.210/0.215 | 0.193/0.212 | |
| 5.3 | Descent speed, no load / full load | m/s | 0.350/0.260 | 0.365/0.240 | 0.365/0.240 | 0.365/0.240 | |
| 5.8 | Max.grade capacity, no load / full load | % | 20/15 | 20/15 | 20/12 | 20/12 | |
| 5.1 | Brake | hydraulic | hydraulic | hydraulic | hydraulic | ||
| Motor | 6.1 | Drive motor | kw | 8 | 8 | 11 | 11 |
| 6.2 | Lifting motor | kw | 8.6 | 8.6 | 12 | 12 | |
| 6.3 | Battery type | Lead acid | Lead acid | Lead acid | Lead acid | ||
| 6.4 | Battery capacity | V/Ah | 48V400Ah | 48V450Ah | 48V480Ah | 48V550Ah | |
| Other | 8.1 | Drive controlling type | AC | AC | AC | AC | |
| 8.4 | Driver's ear noise level according to en12053 | dB(A) | 75 | 75 | 75 | 75 |

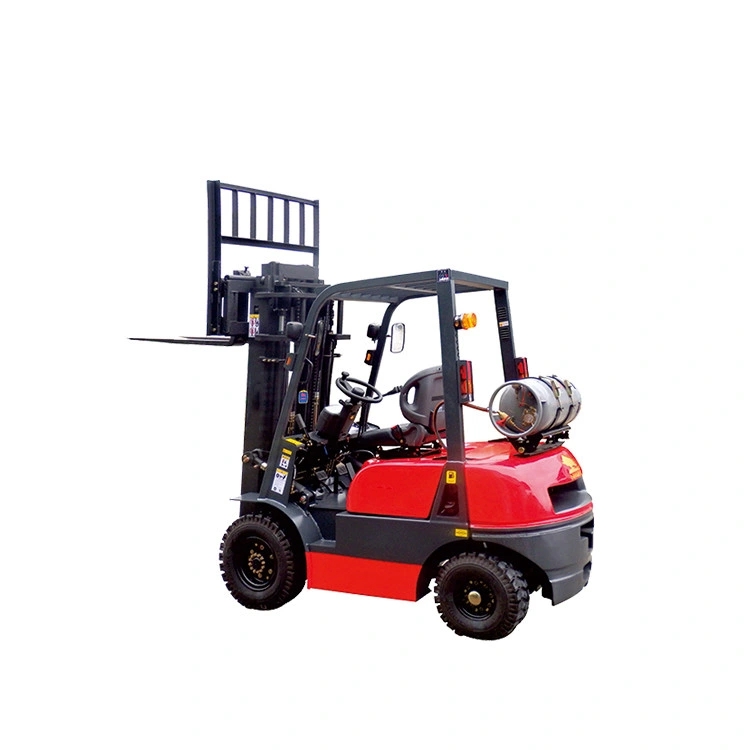

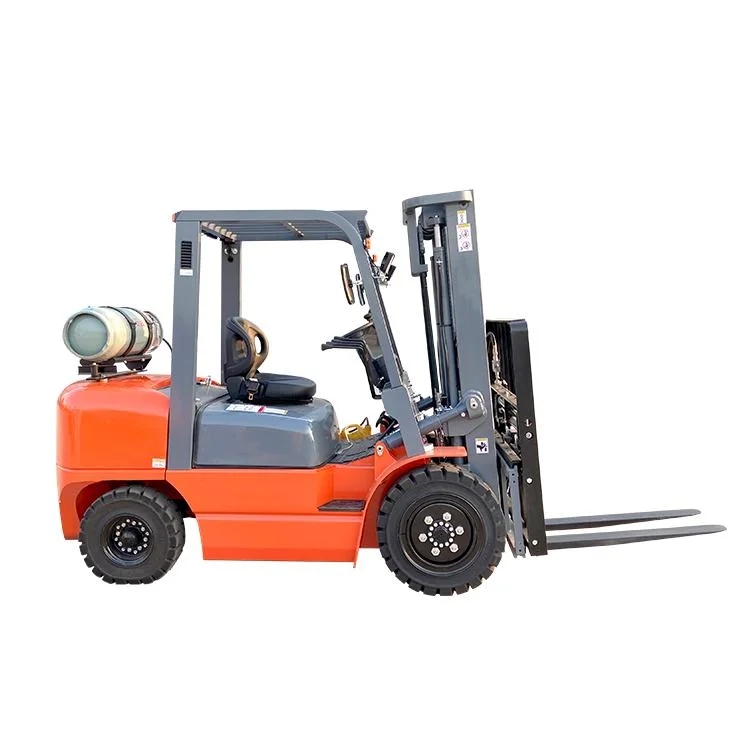

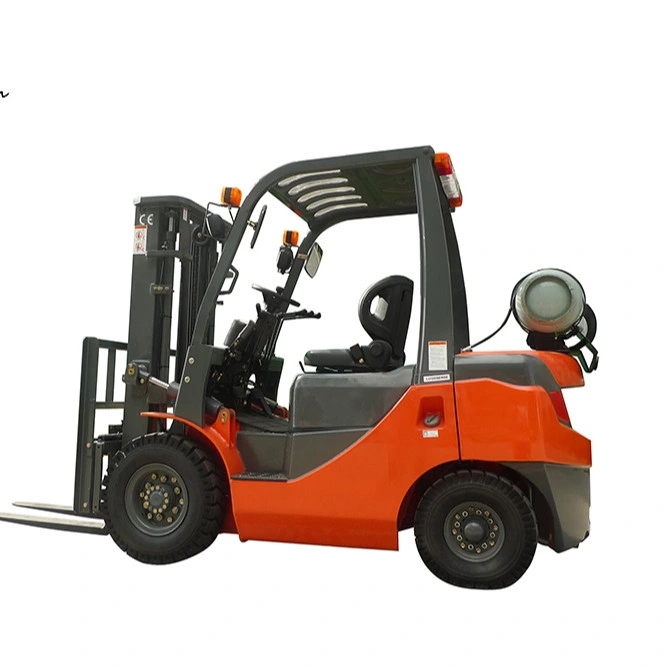

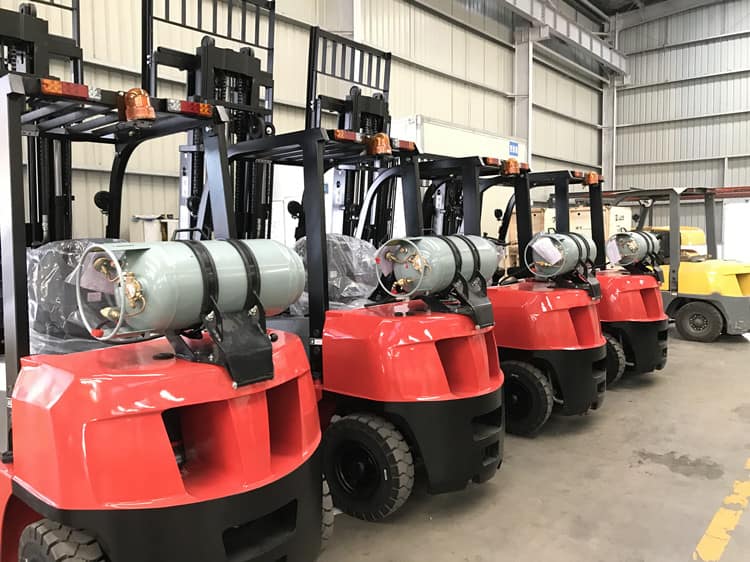

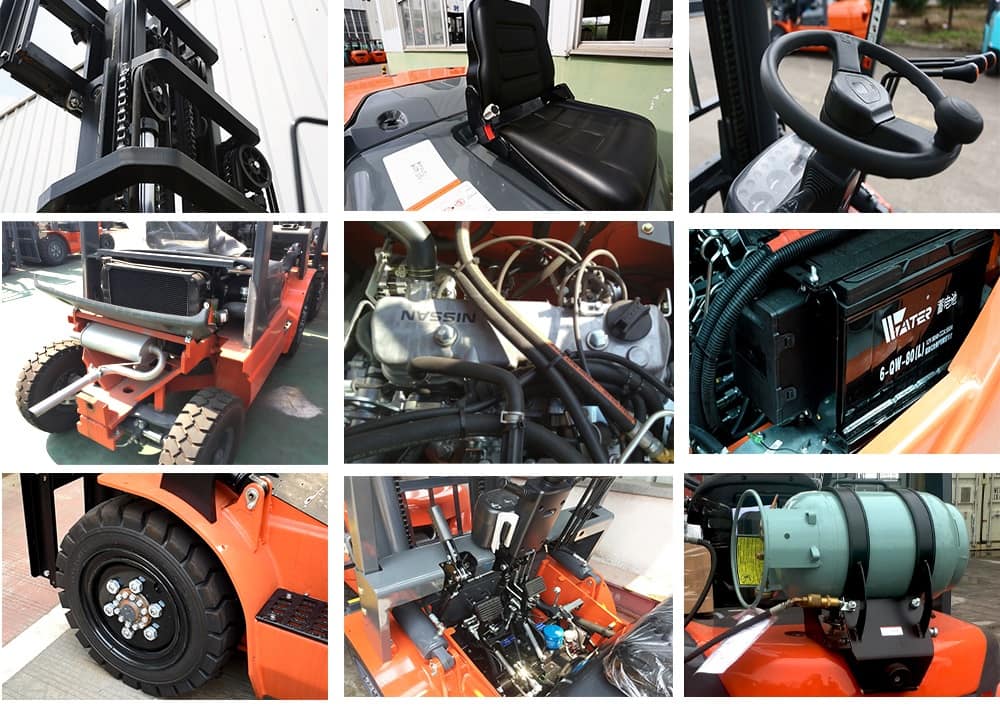

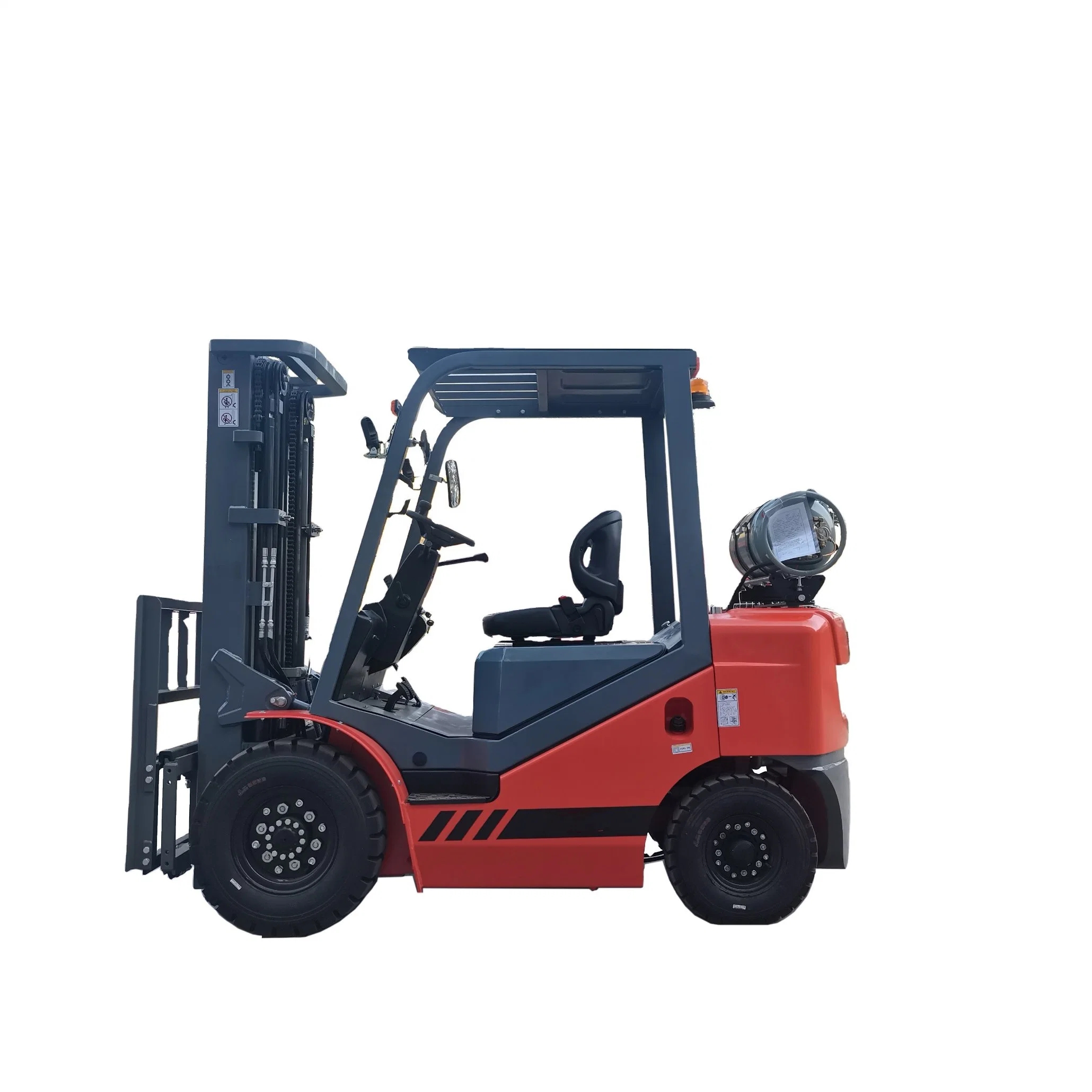

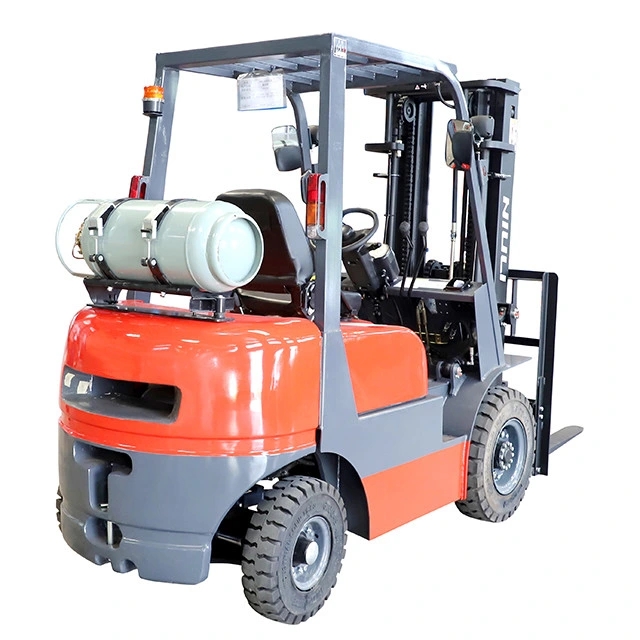

Gasoline/LPG Forklift Pictures for reference:

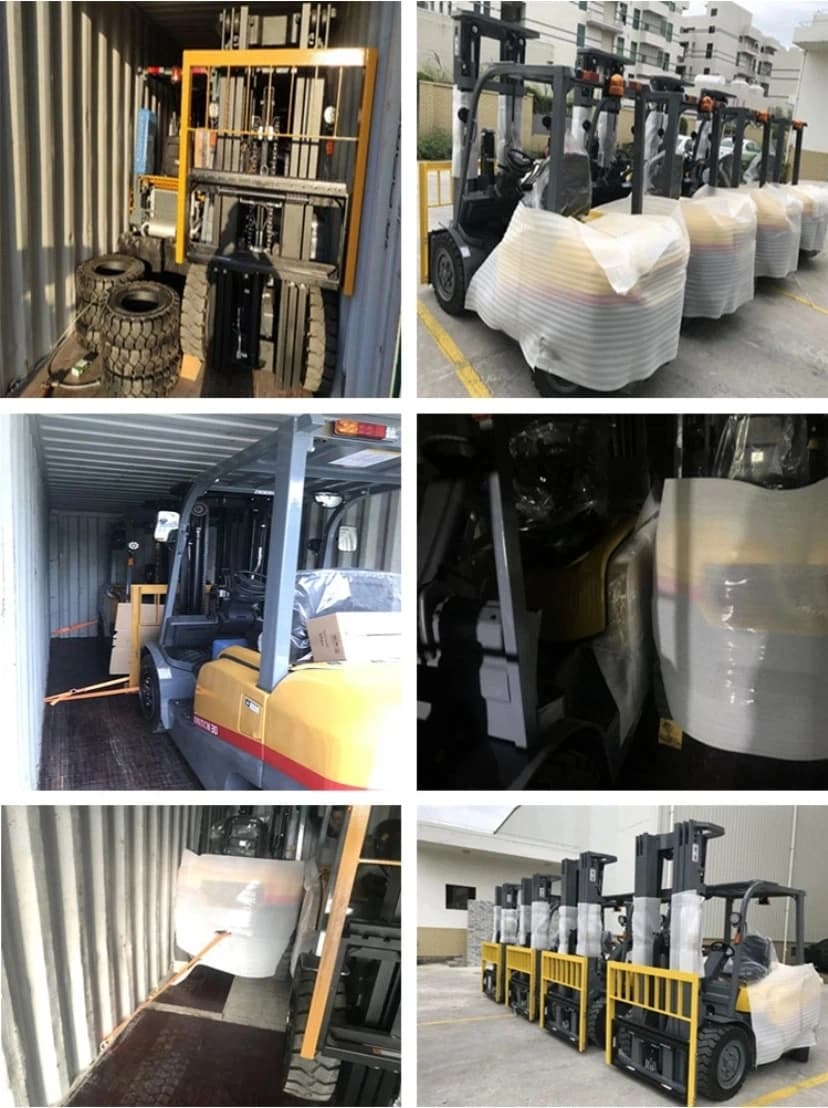

Package & Delivery:
