Product Description
wheel excavator has the functions of digging, crushing, cleaning, drilling and pushing the soil, and can quickly replace the accessories. 9 ton wheeled 360 rotary excavator which is highly-flexible, working either on-road or off-road, always provides versatility, allowing you to switch between the accessories you need.
Excavator Parameters:
| LFT-90 Wheeled Excavator | ||||
| Performance parameters | Power system | Engine model | YTO | YD4100ZG |
| Type | / | Water-cooling/turbocharged | ||
| Rate power | kw/rpm | 60/2400 | ||
| Maximum Torque | N.m/rpm | 287/1680 | ||
| Hydraulic system | Model | Gear pump | SGP1A2XF2H9-Shimadzu | |
| Model | Piston pump | T5VP2D27-Doosan | ||
| Main valve | / | PARKER | ||
| Hydraulic oil tank | L | 110 | ||
| Fuel tank capacity | L | 130 | ||
| Operation system | Swing speed | rpm | 12 | |
| Travel speed | km/h | 35 | ||
| Bucket digging force | kN | 49 | ||
| Arm digging force | kN | 40 | ||
| Maximum tractive force | kN | 62 | ||
| Gradeability | ° | 35 | ||
| Parking brake | / | Automatically air-cut brake | ||
| Driving brake | / | Air brake | ||

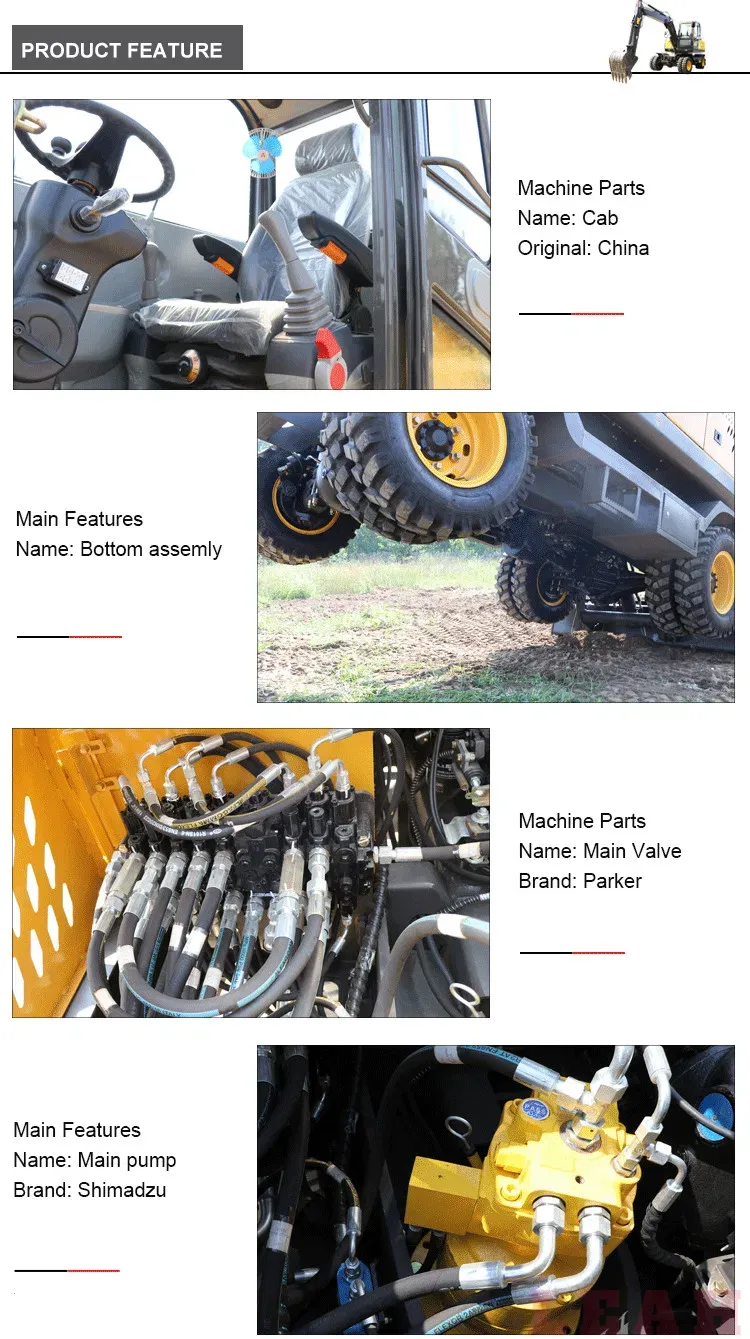

Excavator Details:

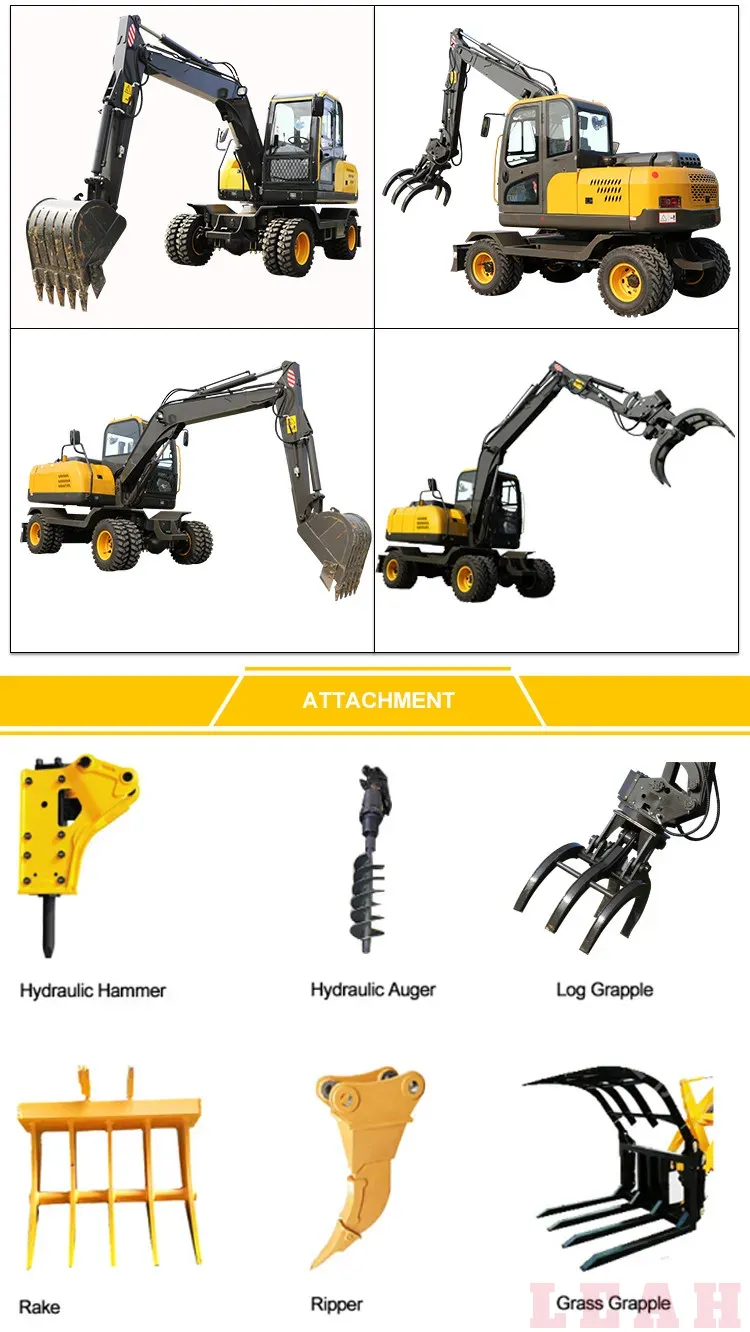

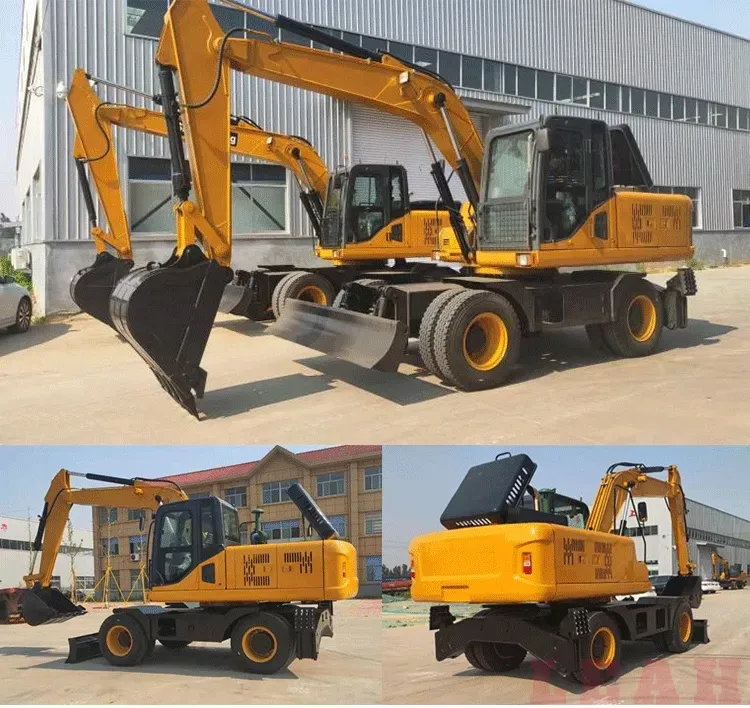

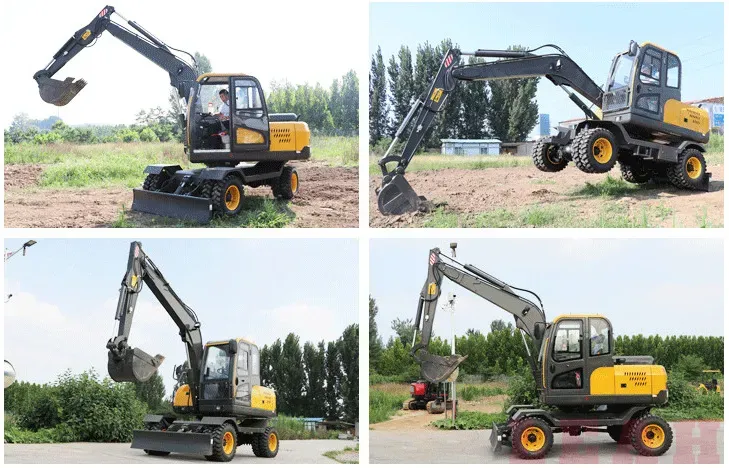

LIFTOR Excavator Pictures:
